Bore Size: 0 - 55 mm
Outside Diameter: 0 - 120 mm
Model Number: 1311k

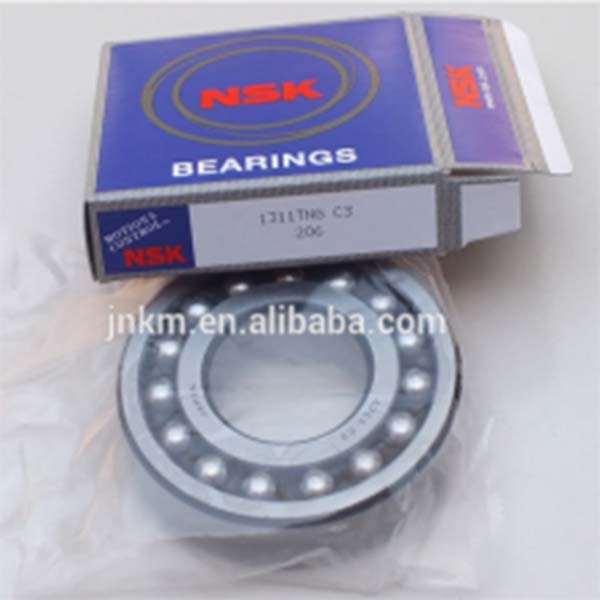

Description: self-aligning ball bearing 1311k
Weight: 1.56kgs
Self-aligning Ball Bearings Application:
Self-Aligning ball bearings to withstand heavy load and impact load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, sugar and other industries, and general machinery.
| ISO | GOST | Dimensions (mm) | Basic Load Rating (N) | Weight | |||
| d | D | B | Dyn. C | Stat. C0 | |||
| 1300 | 1300 | 10 | 35 | 11 | 7220 | 1620 | 0.058 |
| 1301 | 1301 | 12 | 37 | 12 | 9420 | 2120 | 0.067 |
| 1302 | 1302 | 15 | 42 | 13 | 9500 | 2280 | 0.094 |
| 1303 | 1303 | 17 | 47 | 14 | 12500 | 3180 | 0.13 |
| 1304 | 1304 | 20 | 52 | 15 | 12500 | 3380 | 0.165 |
| 1305 | 1305 | 25 | 62 | 17 | 17800 | 5050 | 0.255 |
| 1306 | 1306 | 30 | 72 | 19 | 21500 | 6280 | 0.385 |
| 1306 K | 111306 | 30 | 72 | 19 | 21500 | 6280 | 0.385 |
| 1307 | 1307 | 35 | 80 | 21 | 25000 | 7950 | 0.51 |
| 1307 K | 111307 | 35 | 80 | 21 | 25000 | 7950 | 0.51 |
| 1308 | 1308 | 40 | 90 | 23 | 29500 | 9500 | 0.715 |
| 1308 K | 111308 | 40 | 90 | 23 | 29500 | 9500 | 0.715 |
| 1309 | 1309 | 45 | 100 | 25 | 38000 | 12800 | 0.955 |
| 1309 K | 111309 | 45 | 100 | 25 | 38000 | 12800 | 0.955 |
| 1310 | 1310 | 50 | 110 | 27 | 43200 | 14200 | 1.2 |
| 1310 K | 111310 | 50 | 110 | 27 | 43200 | 14200 | 1.2 |
| 1311 | 1311 | 55 | 120 | 29 | 51500 | 18200 | 1.6 |
| 1311 K | 111311 | 55 | 120 | 29 | 51500 | 18200 | 1.6 |
